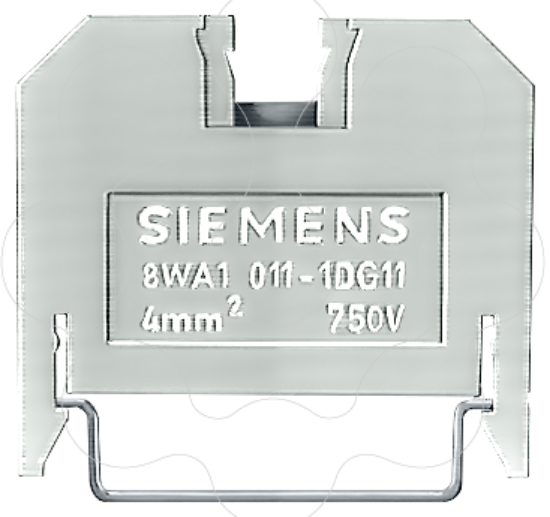

Through-type terminal thermoplast Screw terminal on both sides Single terminal, 6.5 mm Sz. 4 Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Especificações dos produtos
Comprimento | 41.0mm |
Método de montagem | Perfil DIN 35 mm |
Cor | Bege |
Seção da ligação de cabo flexível | 4 - 4mm² |
Material do corpo isolante | Termoplástico |
Versão à prova de explosão 'Ex e' | Não |
Tipo de ligação elétrica 1 | Terminal de parafuso |
Tipo de ligação elétrica 2 | Terminal de parafuso |
Placa de fecho necessária | Não |
Classe de inflamabilidade do material de selagem de acordo com UL 94 | V2 |
Número de níveis | 1 |
Tensão nominal | 800V |
Número de fixações por nível | 2 |
Níveis ligados internamente | Não |
Posição de ligação | Lateralmente |
Largura/tamanho da grelha | 6.5mm |
Temperatura de operação | -25 - 55°C |
Seção de condutor de fio fino de ligação sem ponteira | 4 - 4mm² |
Valor da menor altura de montagem possível | 26.0mm |
Seção do condutor de fio fino de ligação com ponteira | 4 - 4mm² |
Corrente nominal | 32.0A |
Seção da ligação de cabo rígido | 4 - 4mm² |
