    Fabricante: Siemens

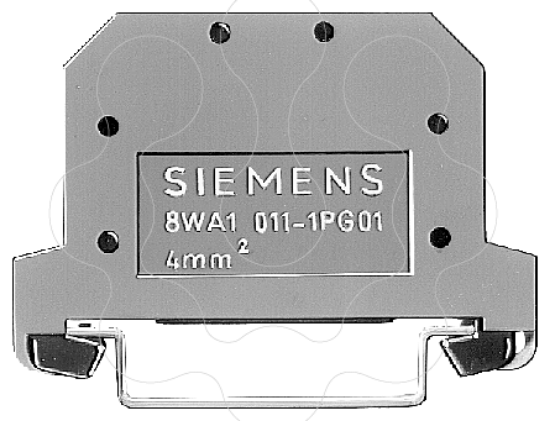

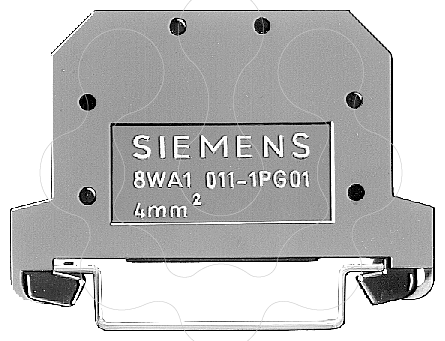

    TT TERMINAL 4SQMM,GREEN-YELLOW

    1,50 € excl imposto
    Through-type terminal thermoplast Screw terminal on both sides Single terminal, green-yellow, 6.5mm, 4 Terminal block connection technology for various industrial applications and modern building inst
    SKU: 10248782
    Número de peça do fabricante: 8WA10111PG11
    GTIN: 4011209156760
    Through-type terminal thermoplast Screw terminal on both sides Single terminal, green-yellow, 6.5mm, 4 Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
    Especificações dos produtos
    Comprimento51.0mm
    Método de montagemPerfil DIN 35 mm
    CorVerde amarelo
    Seção da ligação de cabo flexível4 - 4mm²
    Material do corpo isolanteTermoplástico
    Versão à prova de explosão 'Ex e'Não
    Tipo de ligação elétrica 1Terminal de parafuso
    Tipo de ligação elétrica 2Terminal de parafuso
    Placa de fecho necessáriaNão
    Classe de inflamabilidade do material de selagem de acordo com UL 94V2
    Número de níveis1
    Tensão nominal800V
    Número de fixações por nível2
    Níveis ligados internamenteNão
    Posição de ligaçãoLateralmente
    Largura/tamanho da grelha6.5mm
    Temperatura de operação-25 - 55°C
    Seção de condutor de fio fino de ligação sem ponteira4 - 4mm²
    Valor da menor altura de montagem possível26.0mm
    Seção do condutor de fio fino de ligação com ponteira4 - 4mm²
    Corrente nominal32.0A
    Seção da ligação de cabo rígido4 - 4mm²
    Escreva sua própria avaliação
    • Apenas utilizadores registados podem escrever análises
    *
    *
    • Mau
    • Excelente
    *
    *
    *
    Ficheiros técnicos
    Through-type terminal thermoplast Screw terminal on both sides Single terminal, green-yellow, 6.5mm, 4 Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
    Especificações dos produtos
    Comprimento51.0mm
    Método de montagemPerfil DIN 35 mm
    CorVerde amarelo
    Seção da ligação de cabo flexível4 - 4mm²
    Material do corpo isolanteTermoplástico
    Versão à prova de explosão 'Ex e'Não
    Tipo de ligação elétrica 1Terminal de parafuso
    Tipo de ligação elétrica 2Terminal de parafuso
    Placa de fecho necessáriaNão
    Classe de inflamabilidade do material de selagem de acordo com UL 94V2
    Número de níveis1
    Tensão nominal800V
    Número de fixações por nível2
    Níveis ligados internamenteNão
    Posição de ligaçãoLateralmente
    Largura/tamanho da grelha6.5mm
    Temperatura de operação-25 - 55°C
    Seção de condutor de fio fino de ligação sem ponteira4 - 4mm²
    Valor da menor altura de montagem possível26.0mm
    Seção do condutor de fio fino de ligação com ponteira4 - 4mm²
    Corrente nominal32.0A
    Seção da ligação de cabo rígido4 - 4mm²
